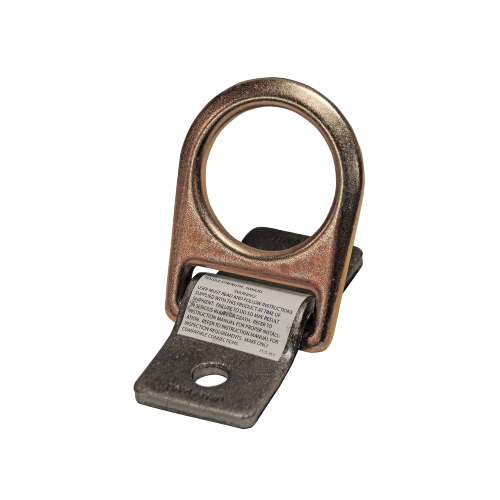

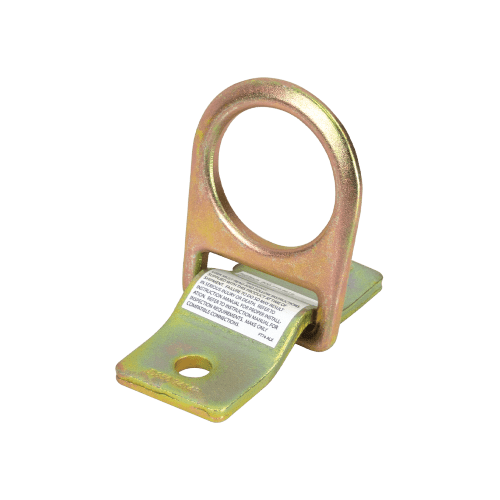

FallTech Bolt-on D-ring Safety Anchor w/ Installation Plate

Fall Tech Bolt-on D-ring Safety Anchor with Installation Plate.

A great addition to your fall protection equipment.

Clear
Have a question? Call 1-800-768-2655

FEATURES

  • Features 2″ x 4-1/2″ alloy steel anchoring plate and D-ring
  • 1/2″ bolt holes require user-supplied fasteners for fixed position installation.
  • Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

Installation Plate: Plated alloy steel
D-ring: Plated alloy; 5,000 lb min. static strength

PERFORMANCE SPECIFICATIONS

Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
Weight N/A
Plate Type

Bolt-on D-ring Anchor with Installation Plate, Weld-on D-ring Anchor with Unplated Installation Plate, Bolt-on D-ring Anchor with Stainless Steel Installation Plate
